Mold Conditioners

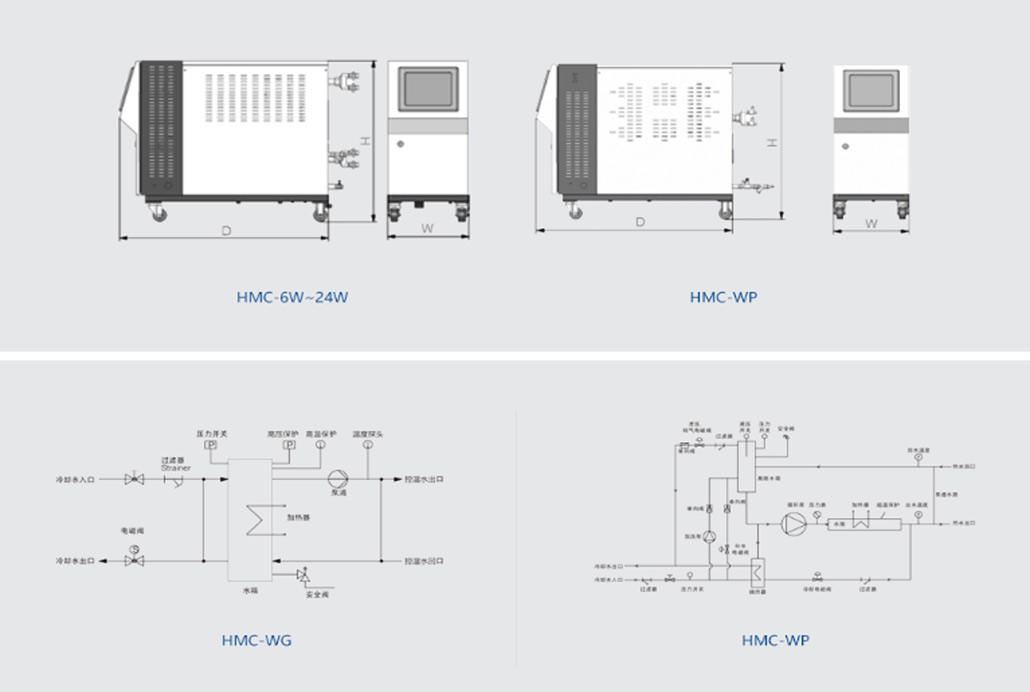

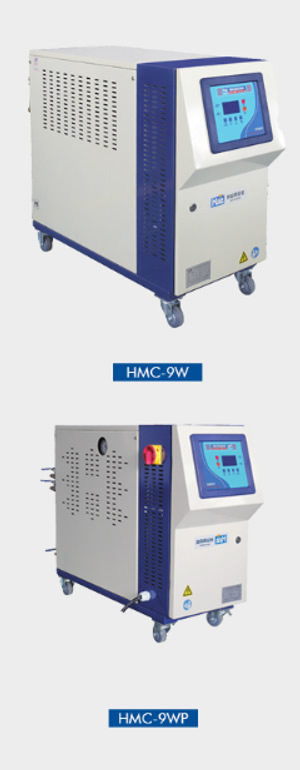

HMC-W Water Mold Temperature Controller

The HMC-WG Water Mold temperature controller is used to heat the mold and maintain the temperature, it can also be used in other similar applications. Use common tap water as the medium, the boiling point of water synchronization pressure increases this property, and use low viscosity water, achieve fast temperature, temperature of heat transfer effect.

HMC-W Water type mold temperature machine maximum temperature: 90 degrees;

HMC-WG Water type mold temperature machine maximum temperature: 120 degrees;

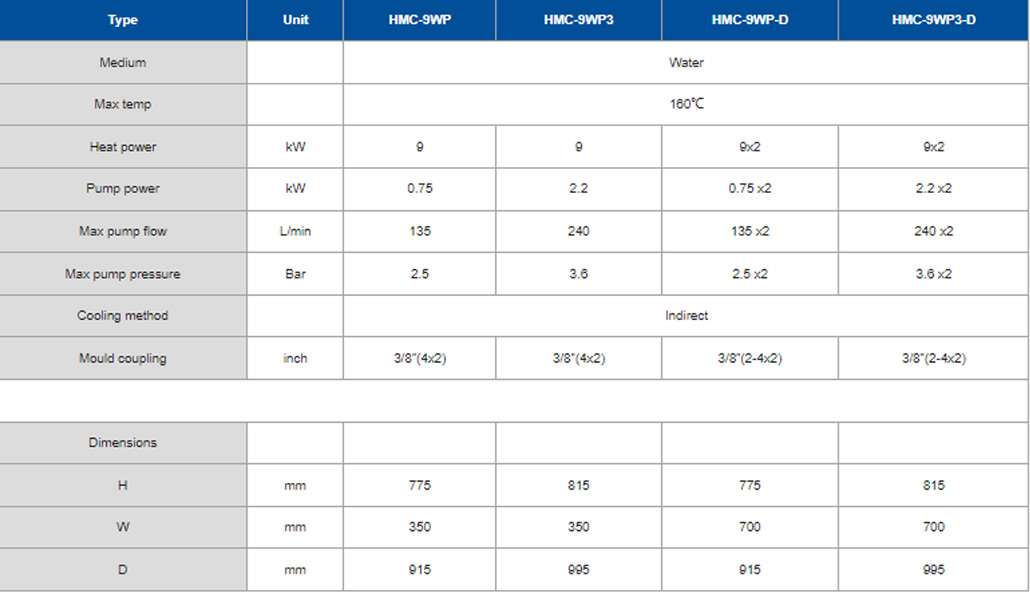

HMC-WP Water type indirect cooling mold temperature machine maximum temperature: 160 degrees;

Mold temperature-specific LCD microcomputer controller, intuitive display, simple operation, stable performance, excellent function;

Dual PID control algorithm, high-precision adjustment of the medium temperature, temperature control accuracy: ± 1 degree;

Equipped with high-quality high-temperature medium to circulation pumps, high-temperature resistant seal, performance stability use;

Abnormal fault warning is accurate and direct, through LED panel output alarm text and indicator light buzzer remind customer;

Electric distribution box with insulation design, good heat dissipation;

Easy maintenance, internal components made of stainless steel, resistant to high pressure and rustproof.

HMC-W standard, with pump overload, phase sequence protection, water inlet low pressure detection, automatic exhaust water and other safety protection, to ensure safe and reliable use.

HMC-WG standard, with pump overload, phase sequence protection, over-temperature protection, overpressure protection, water inlet low pressure detection, automatic exhaust water, automatic safety relief and other safety protection to ensure safe and reliable use.

HMC-WP with pump overload, phase sequence protection, over-temperature protection, over-pressure protection, low-level protection, water inlet low pressure detection, automatic exhaust water, automatic safety relief, indirect cooling and other safety protection to ensure safe and reliable use standard.

NOTE

Standard voltage is 3 Phase, 380V, 50 Hz.

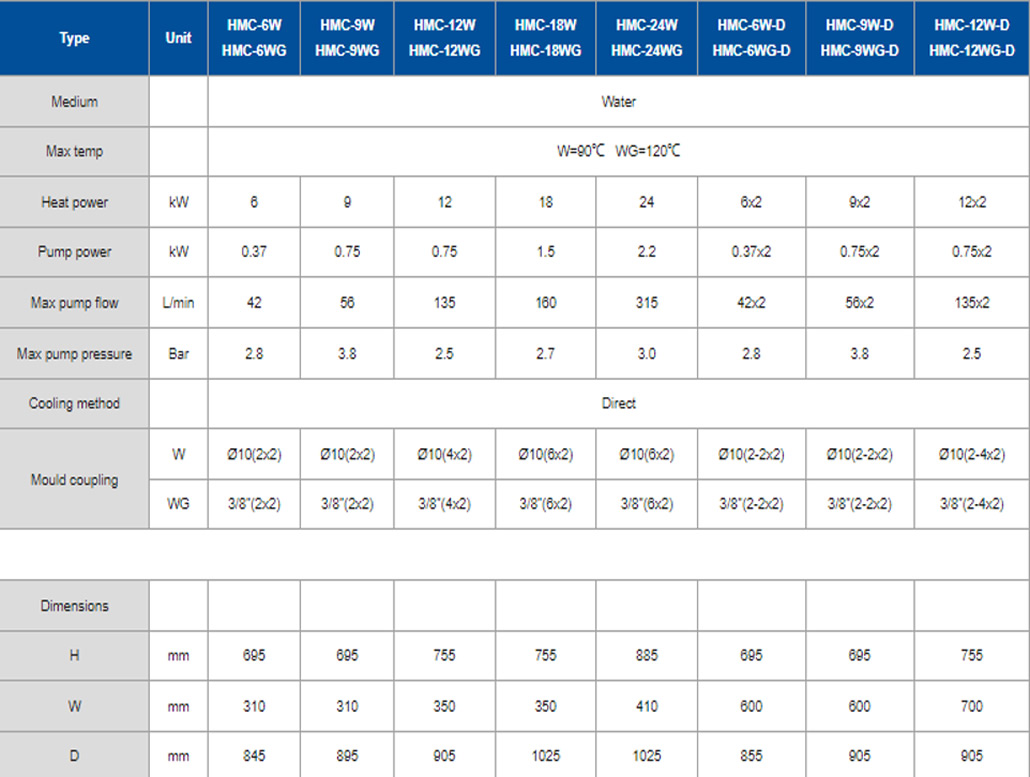

Look at the heating capacity to choose the machine

If you have any special needs, please contact us.

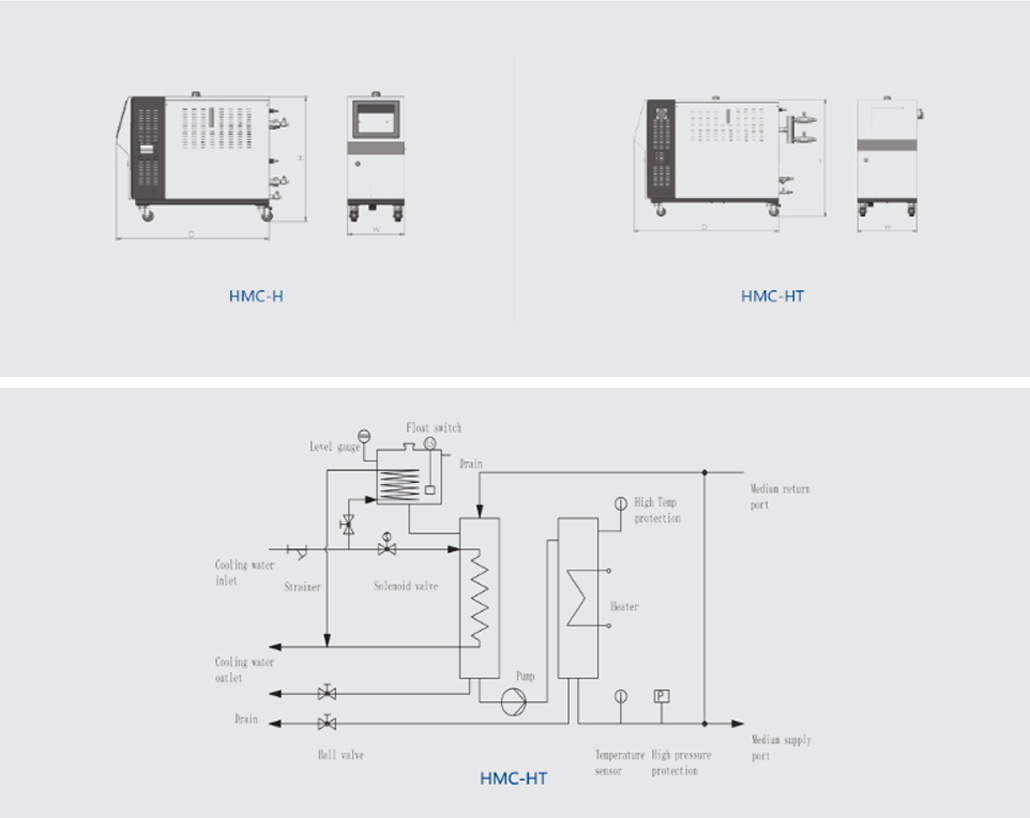

HMC-H Oil Mold Temperature Controller

HMC series mold temperature machine is used for plastic forming mold and temperature regulation. With heating and cooling control, mold and drum temperature are controlled with high precision.

HMC-H Oil type mold temperature machine maximum temperature: 180 degrees;

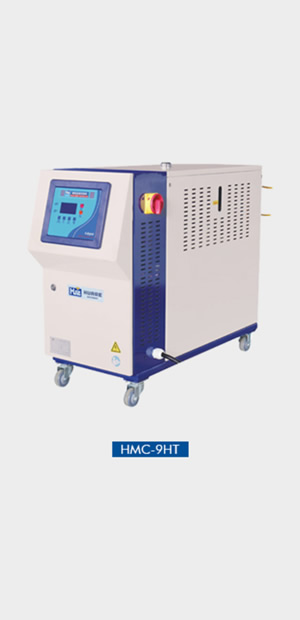

HMC-HT Oil type high temperature mold temperature machine maximum temperature: 300 degrees;

Mold temperature-specific LCD microcomputer controller, intuitive display, simple operation, stable performance, excellent function;

Dual PID control algorithm, high-precision adjustment of the medium temperature, temperature control accuracy: ± 1 degree;

Abnormal fault warning is accurate and direct, through LED panel output alarm text and indicator light buzzer remind customer;

Electric distribution box with insulation design, good heat dissipation;

Easy maintenance, easy installation, easy to use;

HMC-H using branded pump, high pressure, high stability, no leakage;

HMC-H standard with pump overload, phase sequence protection, low oil level protection, over-temperature protection and other safety protection to ensure safe and reliable use;

HMC-HT using SPECK high quality magnetic drive pumps, high temperature resistant, high pressure, stable performance;

HMC-HT standard with pump overload, phase sequence protection, low oil level protection, over temperature protection, over pressure protection and other safety protection to ensure safe and reliable use;

Standard voltage is 3 Phase, 380V, 50 Hz.

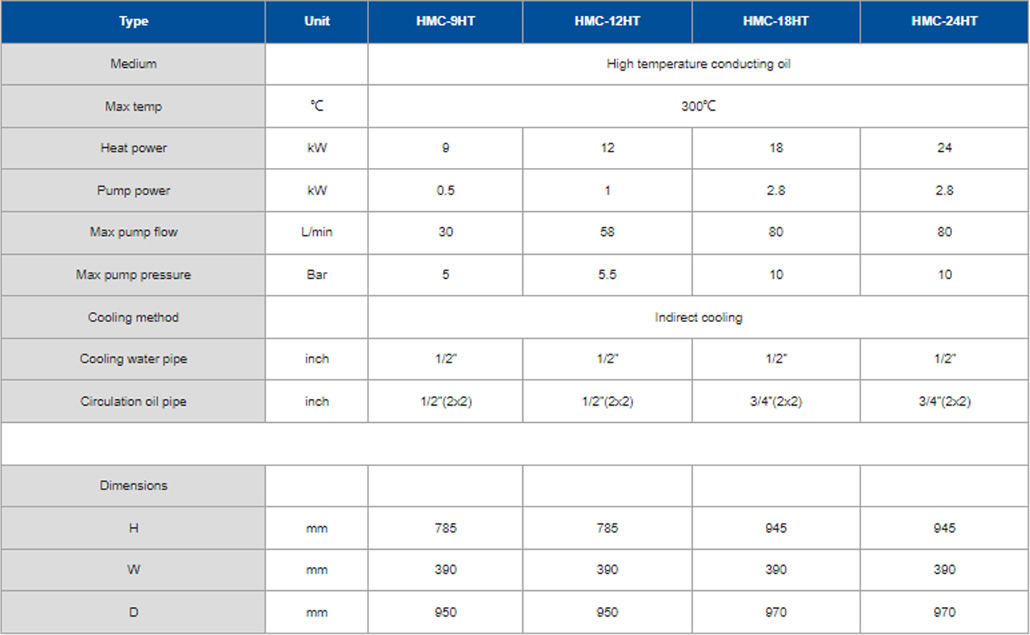

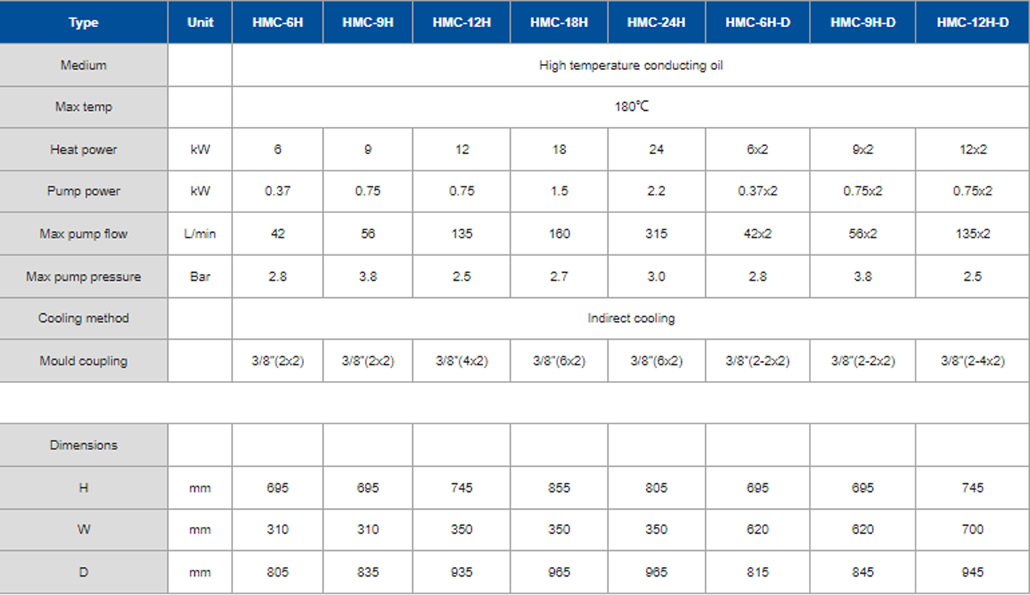

Look at the heating capacity to choose the machine

If you have any special needs, please contact us.
