Loaders

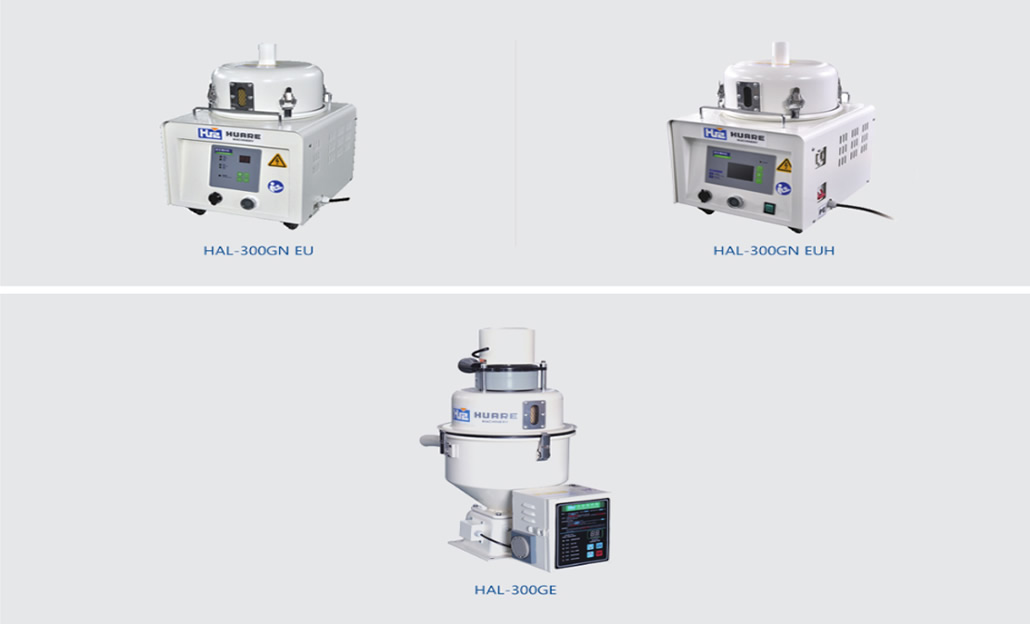

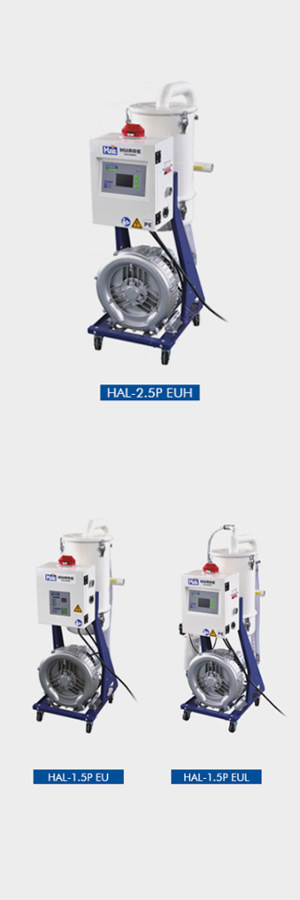

HAL Vacuum Autoloader

HAL vacuum Autoloader is equipped with stainless steel hopper, high performance vacuum motor, motor overload protection device and idle alarm. Compact, durable, easy installation and operation with strong vacuum suction.

Main unit and filter chamber are separated, designed for safety and convenience

Microcomputer control operation

Independent filter device to facilitate dust removal

Stainless steel storage bin is light and durable

The control box is designed independently and is easy to maintain

Automatic sound alarm protection device for material shortage

EU- single segment model configuration digital tube computer board, EU double segment model configuration LCD computer board

EUH models are equipped with main power switch and LCD display and RS485 network function

EUL models are equipped with main power switch and filter air purifier and LCD display and RS485 network function

The two-stage model is only suitable for EUH or EUL configuration. The EU digital computer board is not equipped with a two-stage model.

The main controller and hopper are two separate units that are safe and easy to use,

Independent filter and easy to clean,

Stainless steel bowl, light, durable and easy to clean;

Independent control box, easy to maintain

Automatic alarm for idling

EUH model standard with Main Power Switch and PLC+Touch screen HMI

EUL model standard with Main Power Switch and Filter Spray Cleaning and HMI with PLC+Touch screen

EUH & EUL model RS485 Network can be optional

Standard voltage: 300GE AND 300GN 1 Phase, 220V, 50 Hz, other types 3 Phase, 380V, 50 Hz;

If you have any special needs, please contact us.

OPTIONS

Double-layer insulating cylinder function optional

Dryer filter. Filter with fan motor, dryer feet for floor mounting, throat magnet, magnet inside dryer, dryer throat optional

HLINK network configuration optional

Note

It is based on a particle diameter of 3-5 mm, a standard plastic raw material density of about 0.65 kg/L.

The power supply must use the specified voltage

If you have any special needs, please contact us.
