Fully Automatic

Injection Machines



Technicial Specifications

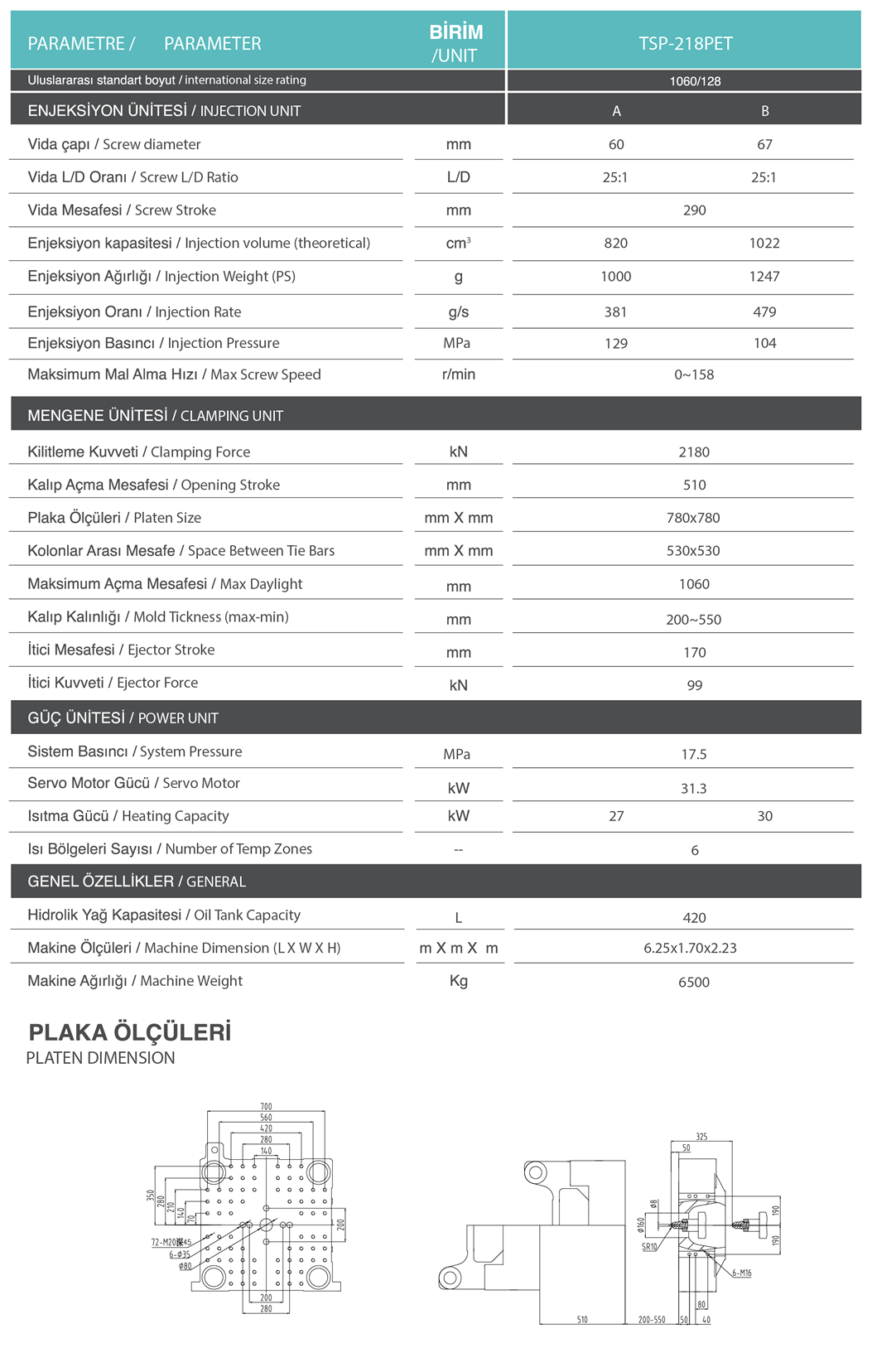

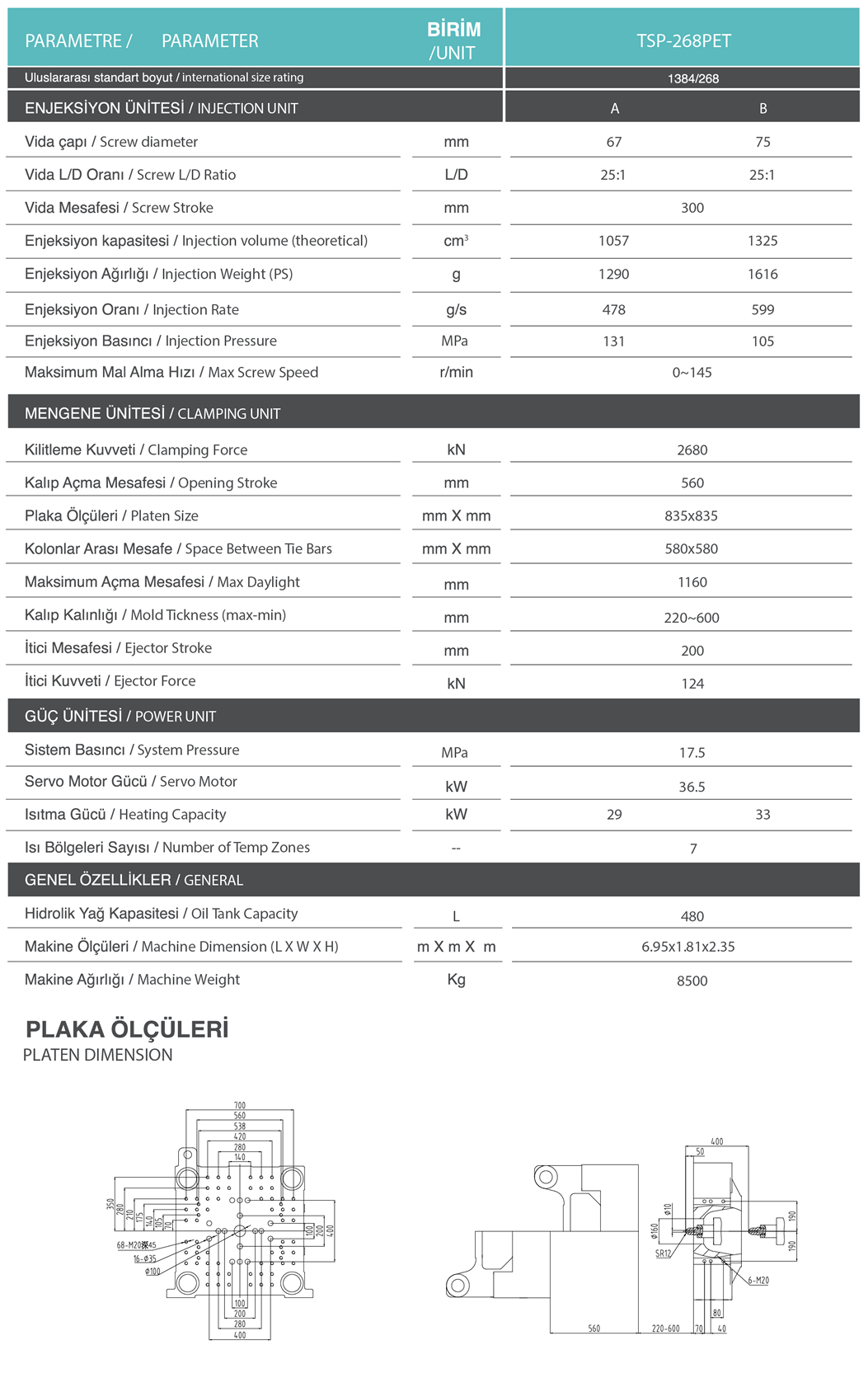

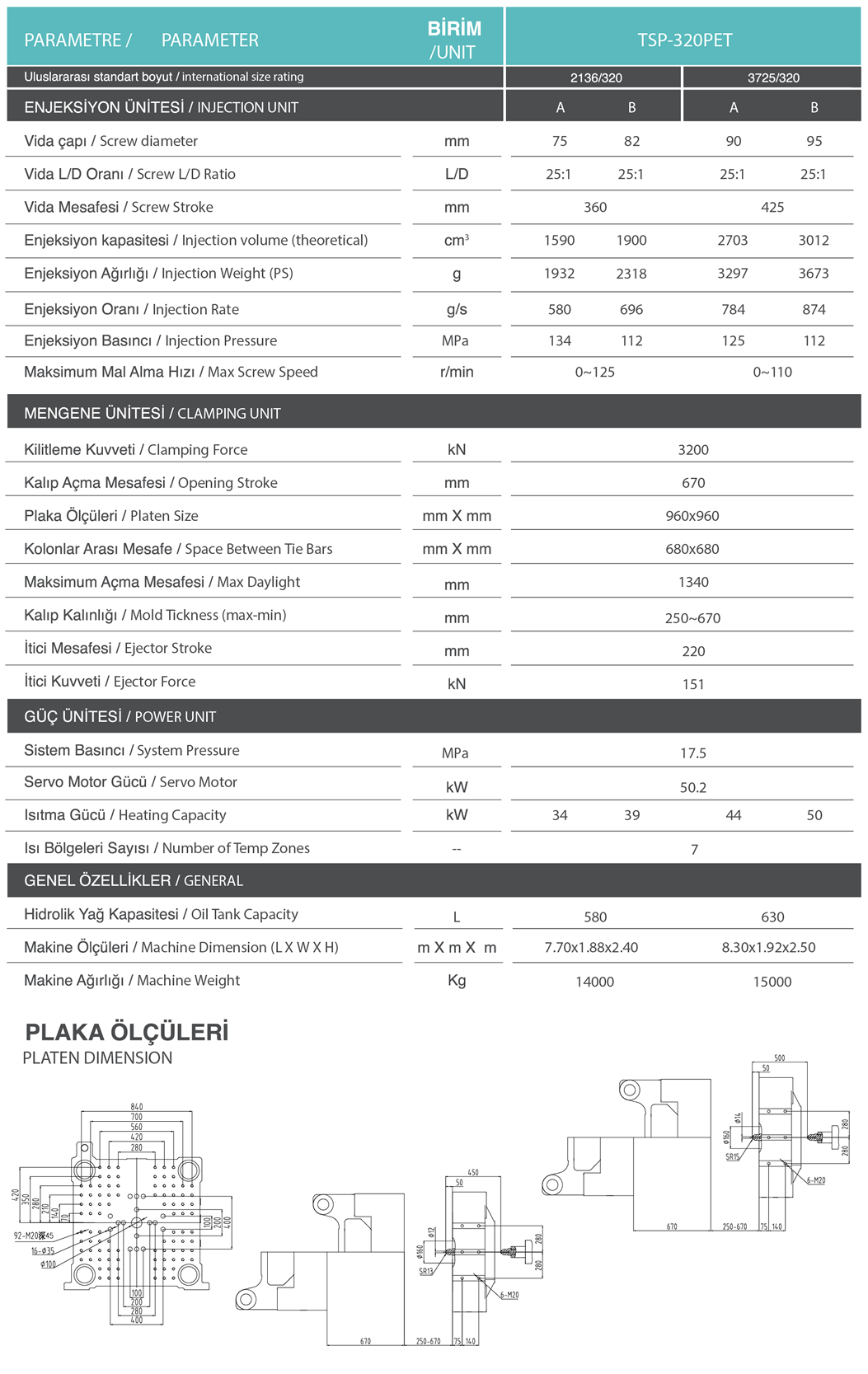

TSP-218PET ● TSP-268PET ● TSP-320PET ●

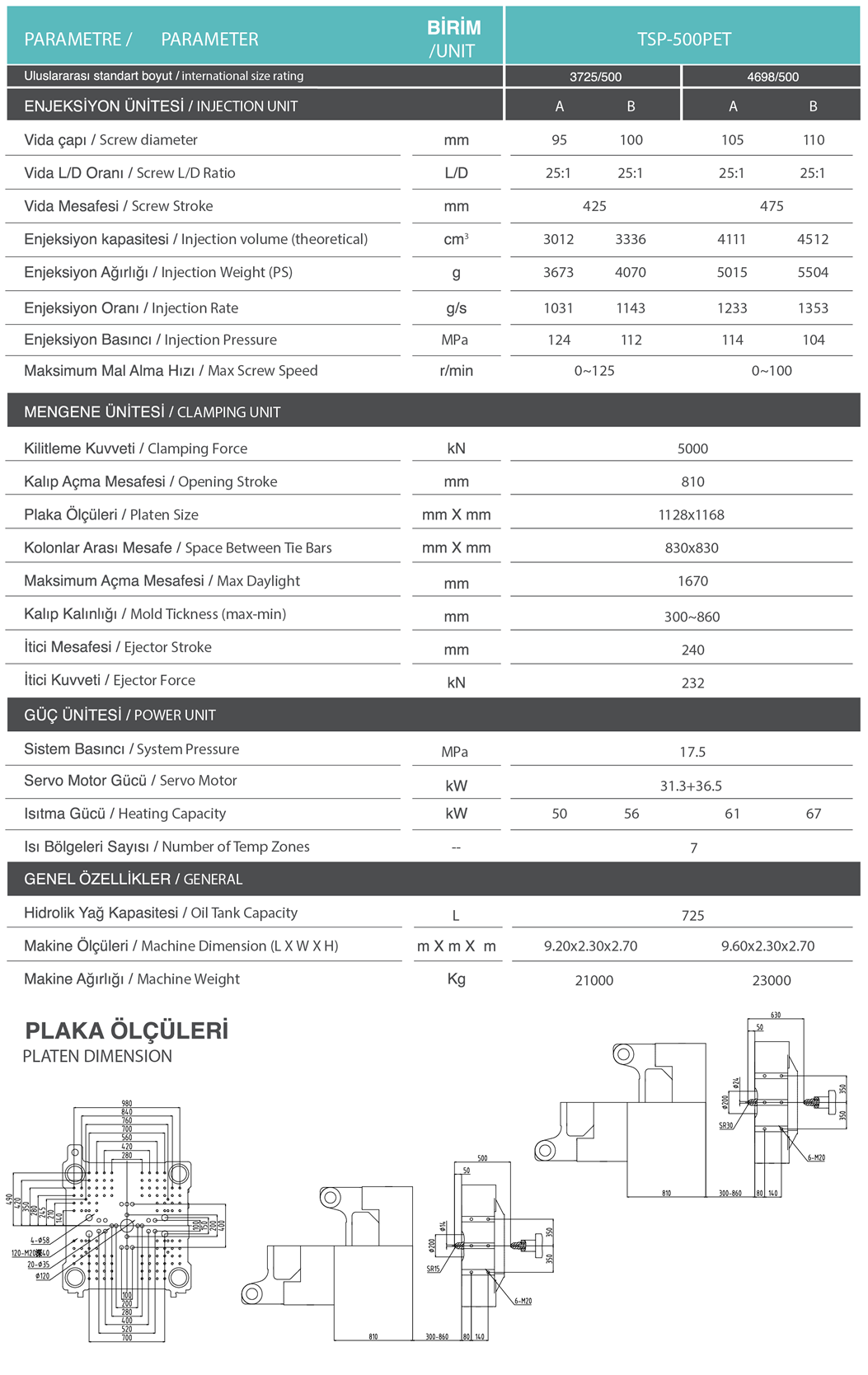

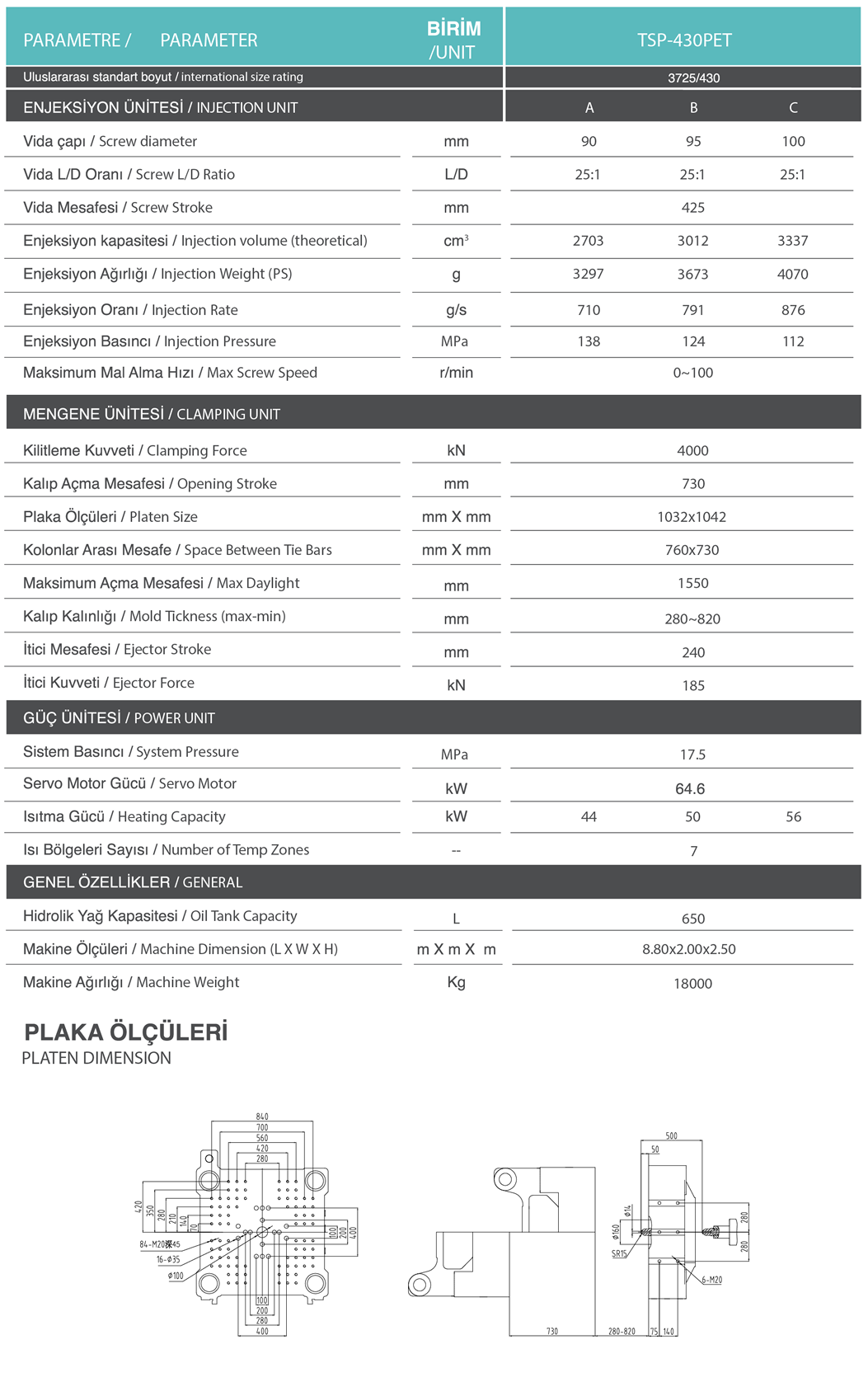

TSP-430PET ● TSP-500PET ●

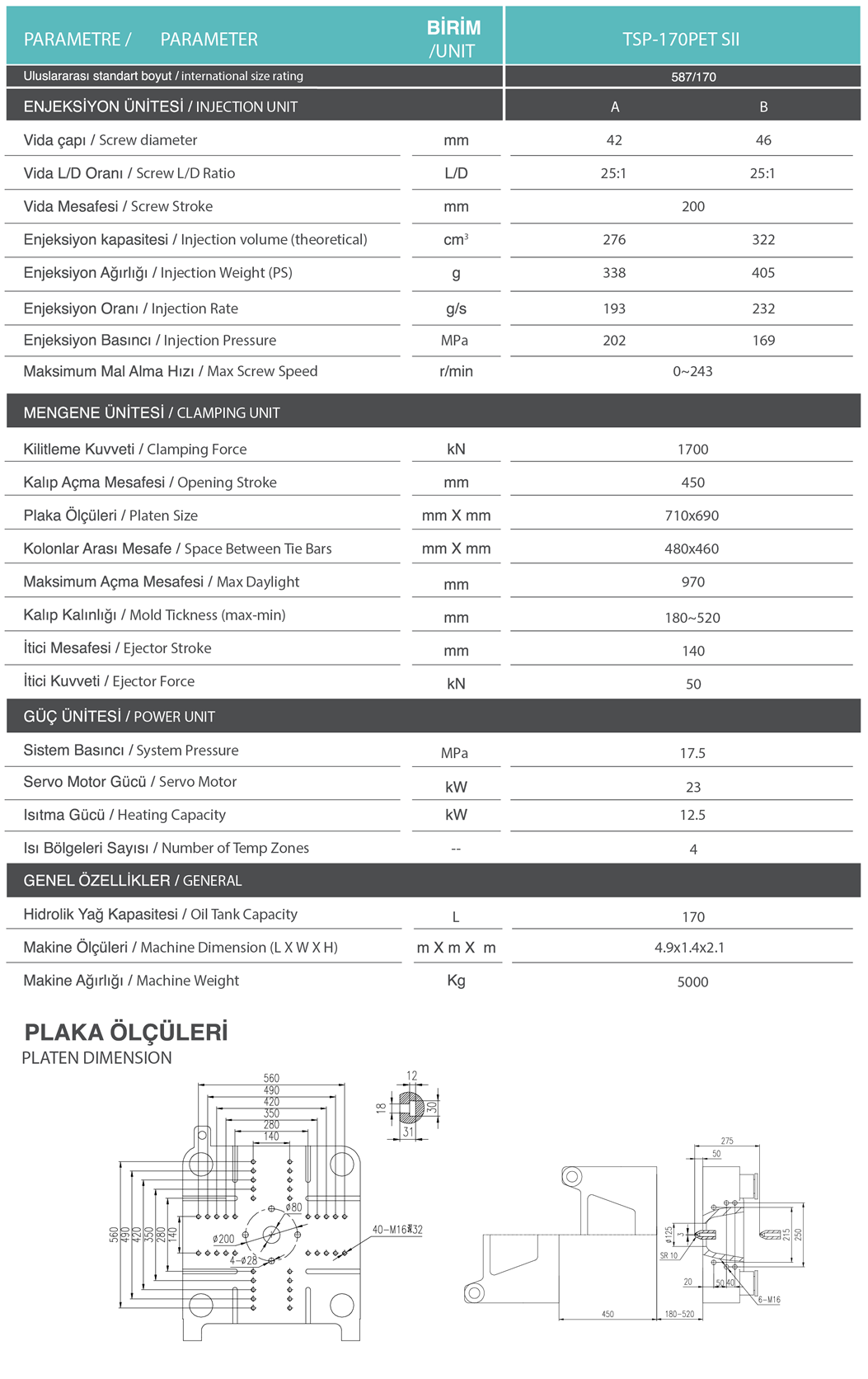

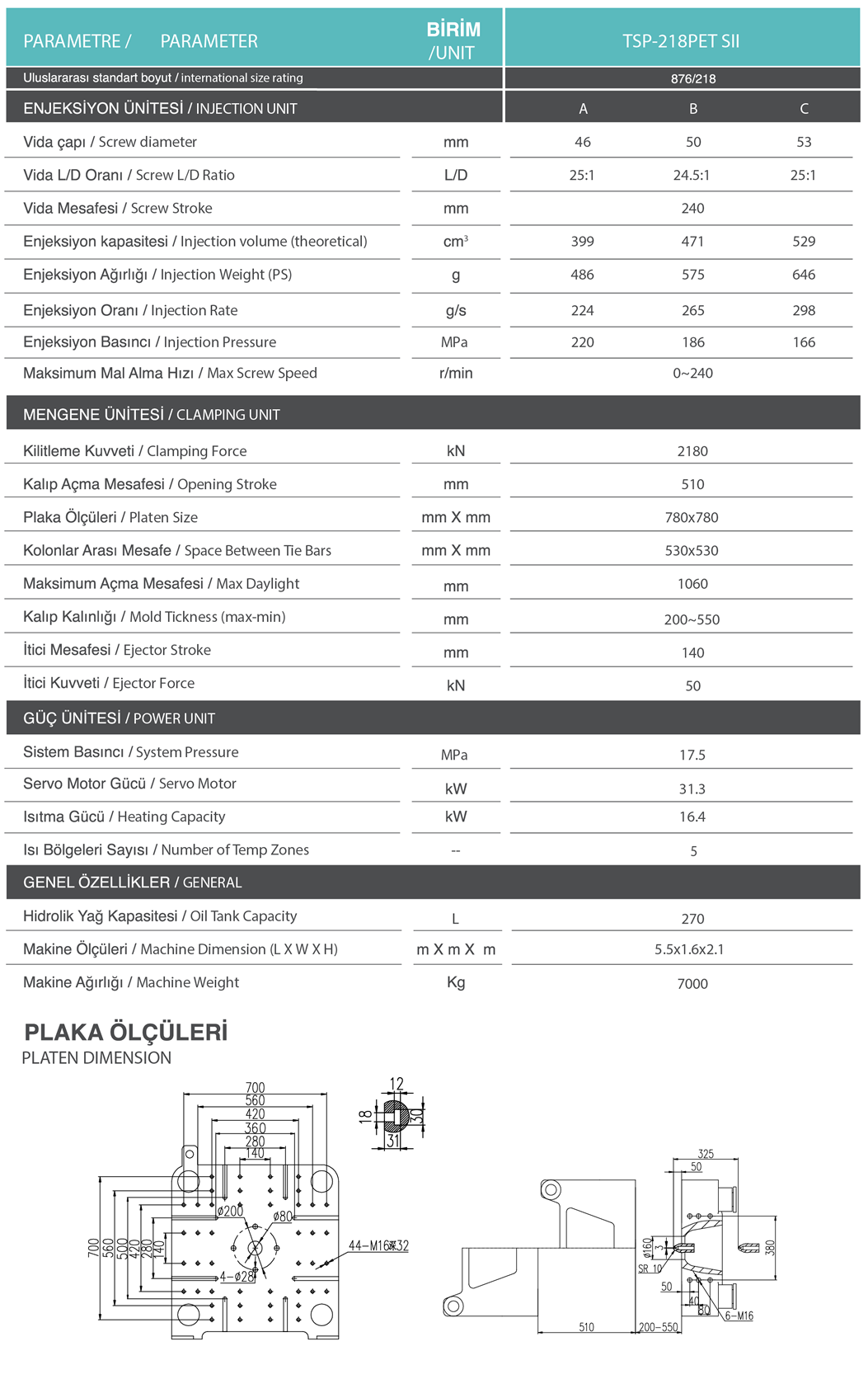

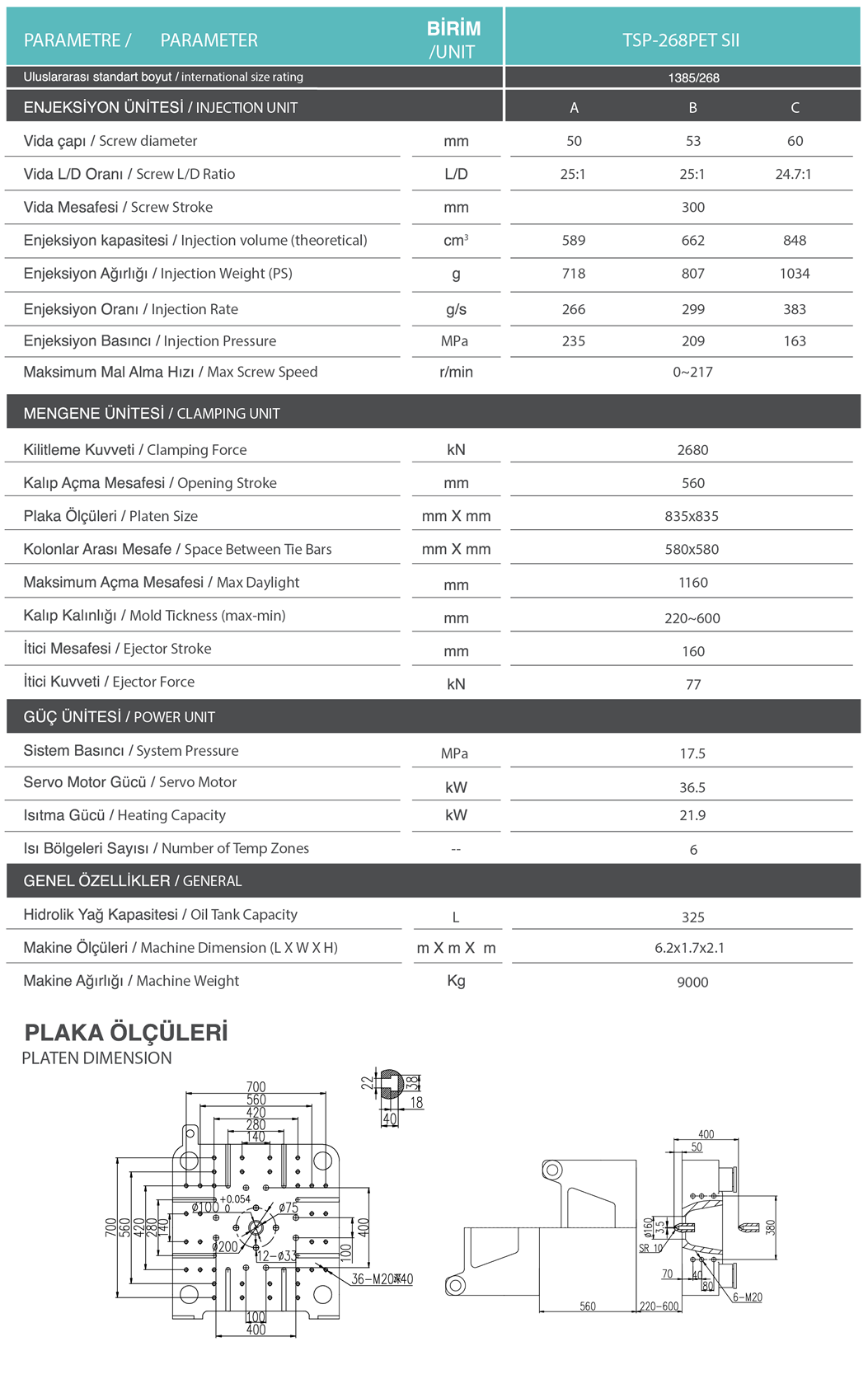

TSP-170PET SII ● TSP-218PET SII ● TSP-268PET SII ●

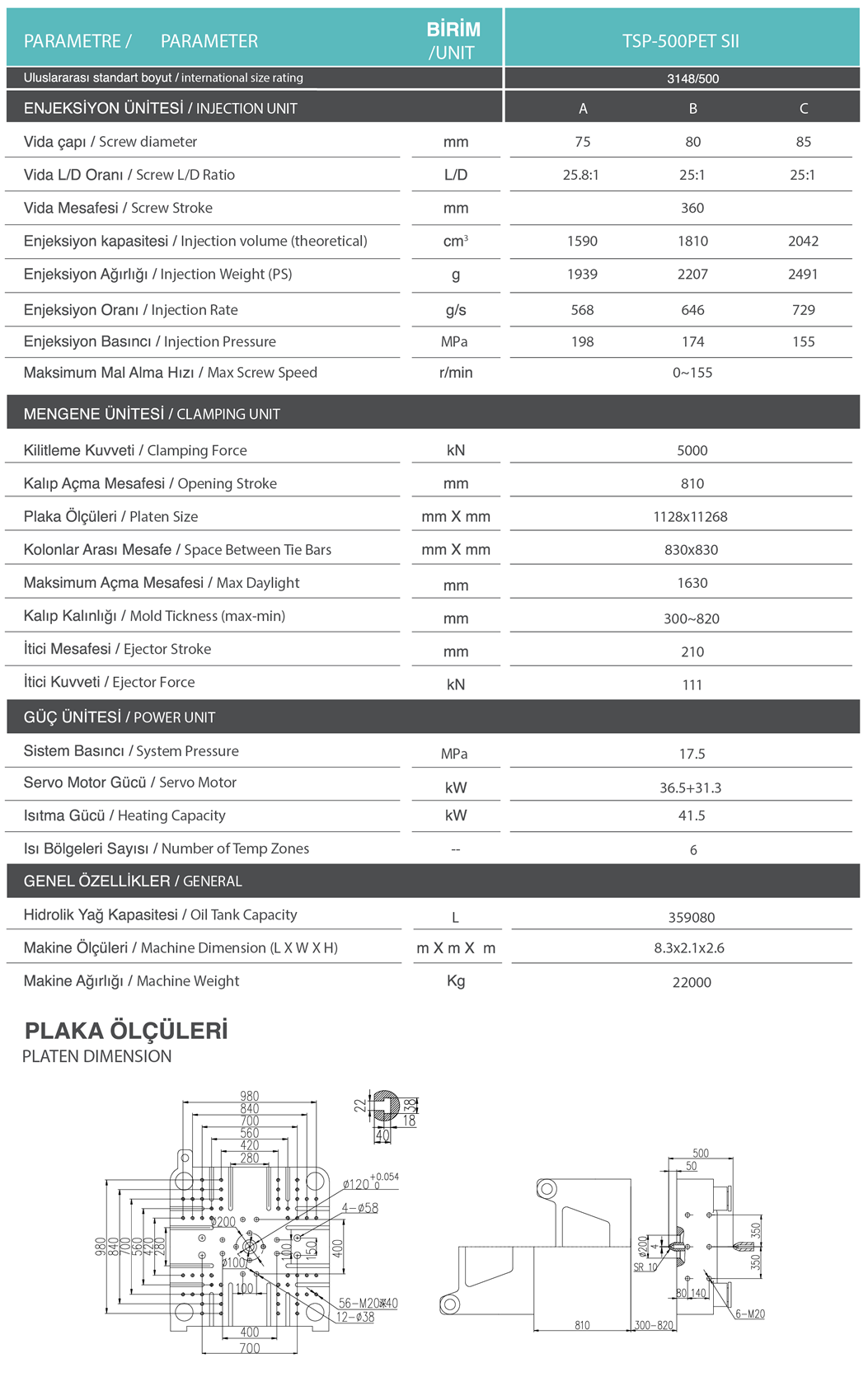

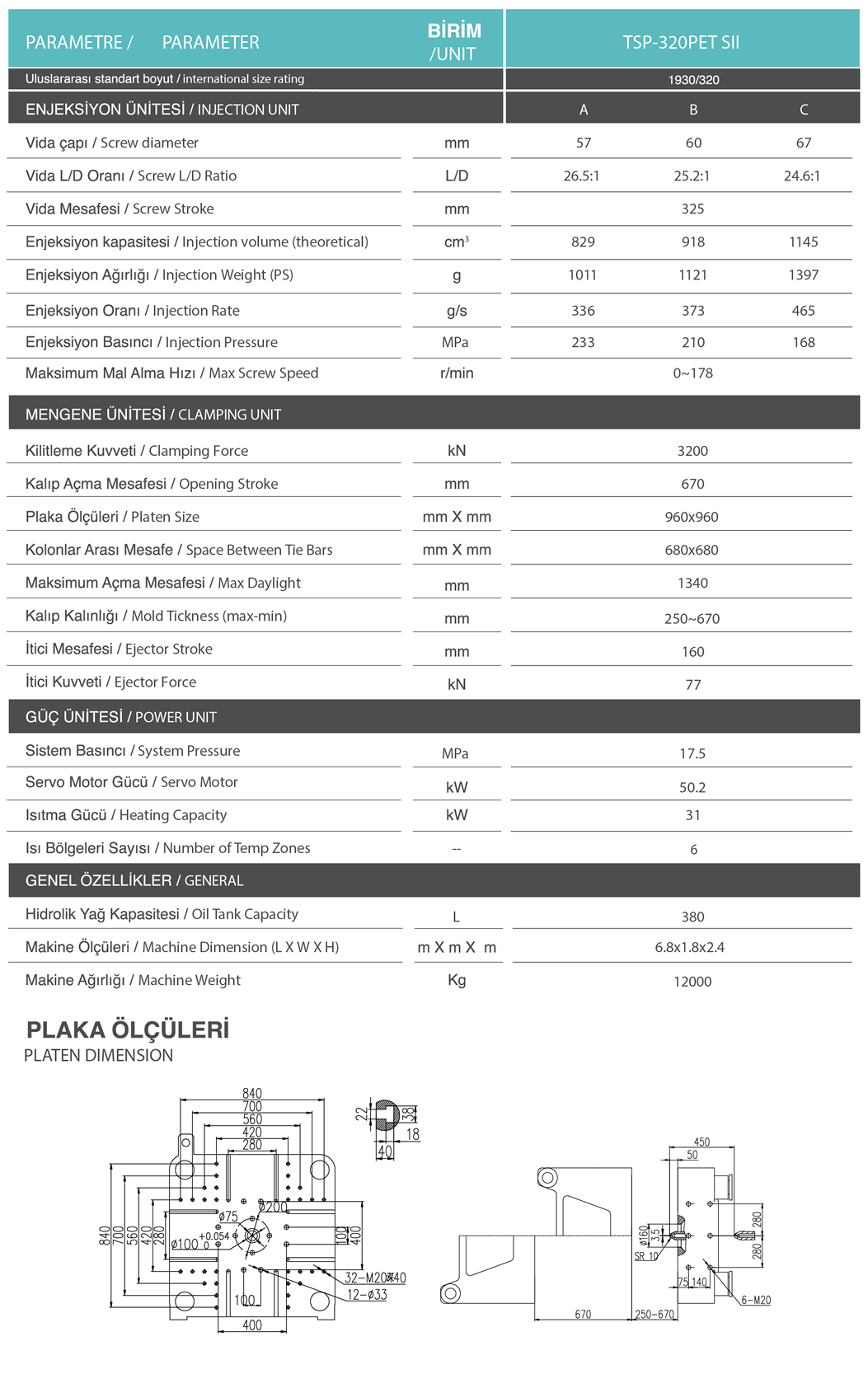

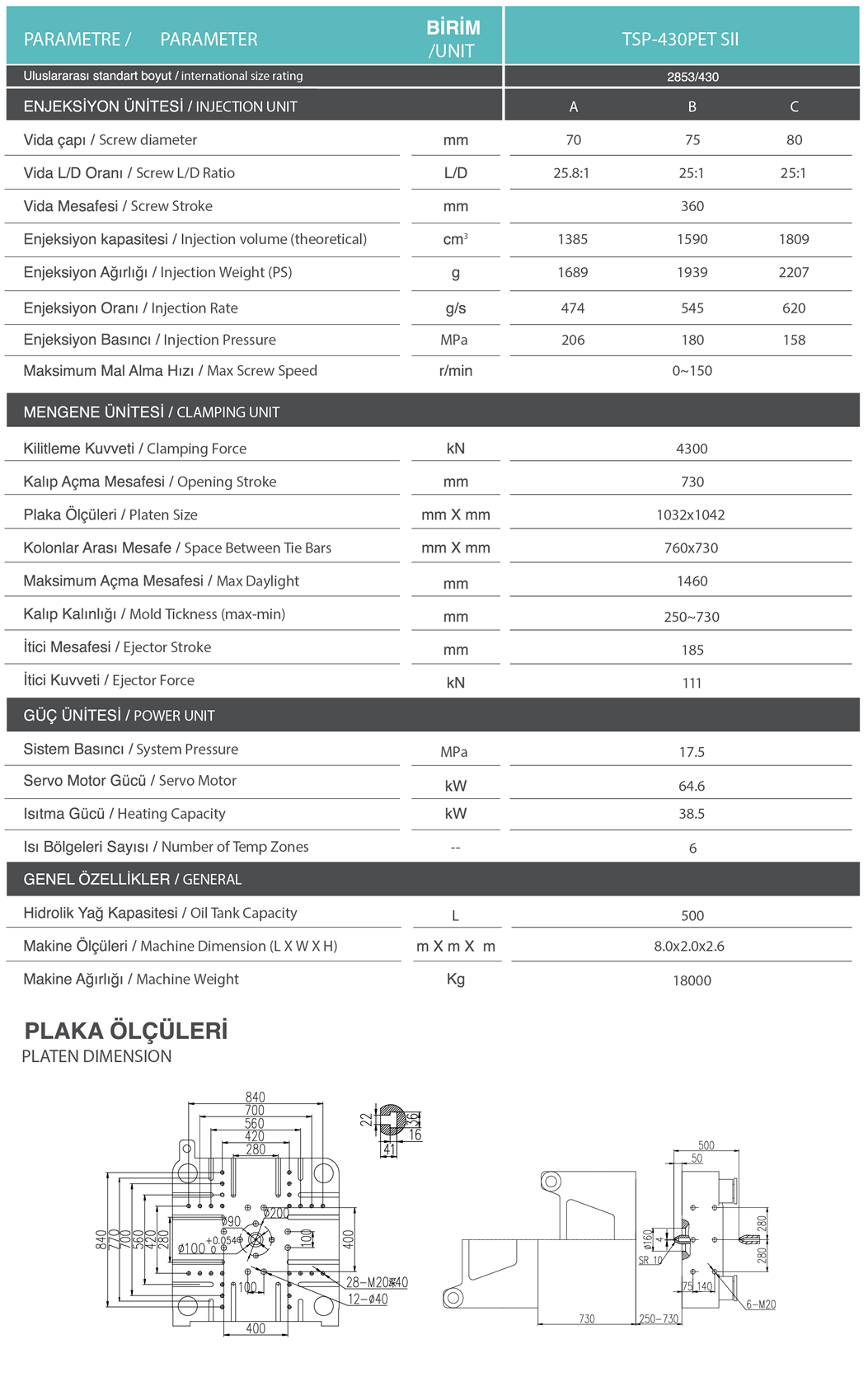

TSP-320PET SII ● TSP-430PET SII ● TSP-500PET SII ●


TSP PET Series

PRECISION, RELIABILITY, STABLE, FAST, STABLE
TSP PET rapid preform injection system is based on the TSP MSII series design platform and Xiao Cheng's design concepts of "precision", "satisfaction", "stable" and "fast" is based on. It is designed according to the production characteristics of PET bottle preforms. It is more efficient and professional. Special injection molding machine for PET bottle preform production. Compared with general-purpose preform machines in the industry, this series is specially manufactured according to customer needs, highlighting TSP Group Machinery's product concept of precise and focused positioning in the PET preform injection industry to achieve production value and better service to customers.

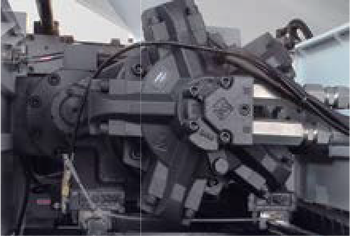

New Clamp Unit

New design vise system with high rigidity structure helps reduce deformation defects as well as stable and efficient performance.


Large opening stroke and mold thickness can be widely used in the production of various sizes of plastic preform molds.


Yeni Mengene Ünitesi

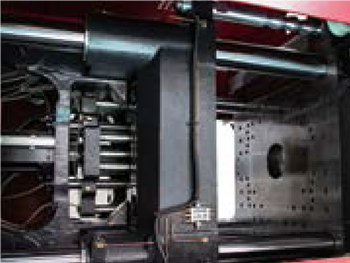

Double Cylinder Injection Balanced System

The injection platform adopts a fully integrated injection cylinder during injection to further increase the balanced force and reduce the return resistance of oil during injection. Double-cylinder injection balanced system and high pressure reduce the return resistance of oil during injection. Injection makes it more stable.


Çift Silindir Enjeksiyon Dengeli Sistem

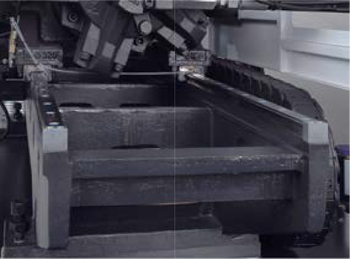

Linear Guide Injection Unit

Optimized Linear Guide Design to Increase Linearity: It is integrated to increase the rigidity during injection, so that the injection unit moves evenly and provides force evenly, and to ensure that the direction of the force is co-axial with the force during the movement of the injection mechanism. It increases the stability and linearity during injection. The injection unit makes the force more balance and the injection more precise. Linear linear slide design is used to reduce friction resistance during injection and plasticization and effectively increase the response speed of the hydraulic system. Linear slide was used in the injection unit to minimize friction and increase the response speed of the hydraulic system.


Lineer Kızaklı Enjeksiyon Ünitesi

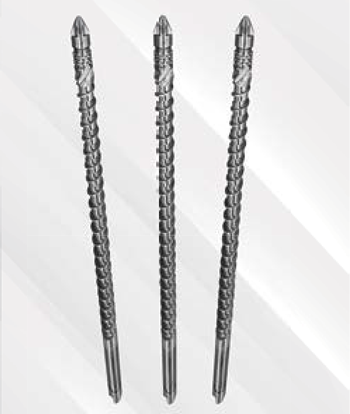

Professional Pet Screw Optimization Design

The surface is hard coated using special materials and a special heat treatment process. In response to the process needs of improving product transparency and improving the color mixing effect of bottle preforms, the material network is added by a forced shear slope with ultra-high plasticizing effect. Compared with similar brands, the plasticization rate is increased by more than 12-15%, effectively shortening the molding cycle of the product.


Using special materials and special heat treatment to improve product transparency and color mixing effect. Compared with similar products, its plasticization ability is increased by 12%-15%.


Pet Vida Optimizasyon Tasarımı

Specially Developed Goods Receiving Hydro Engine

Using a specially enlarged hydraulic motor (with back oil discharge and self-lubrication function) to reduce the plasticization stability and service life of the hydromotor, Special enlarged hydraulic motor with back oil discharge and self-maintenance function is used to ensure plasticization stability and service life.


Hidro Motoru

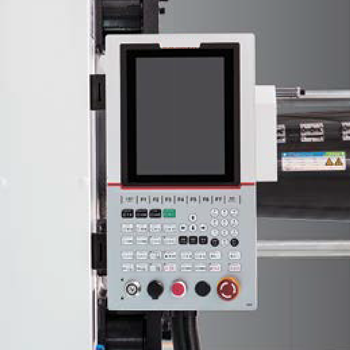

Computer Control System

Mechanical, electrical and hydraulic triple protection increases machine safety. Three Safety Protection Systems: Mechanical, electrical, Hydraulic System.


EQUIPPED WITH MOLD VALVE GATE CONTROL


The machine interface provides multiple selections of mold valvegate modes. Each mode has an adjustable delay for preform production. Control modes can be selected, each mode with delay can be adjusted.


Bilgisayar Kontrol Sistemi
