Fully Automatic

Injection Machines



Technicial Specifications

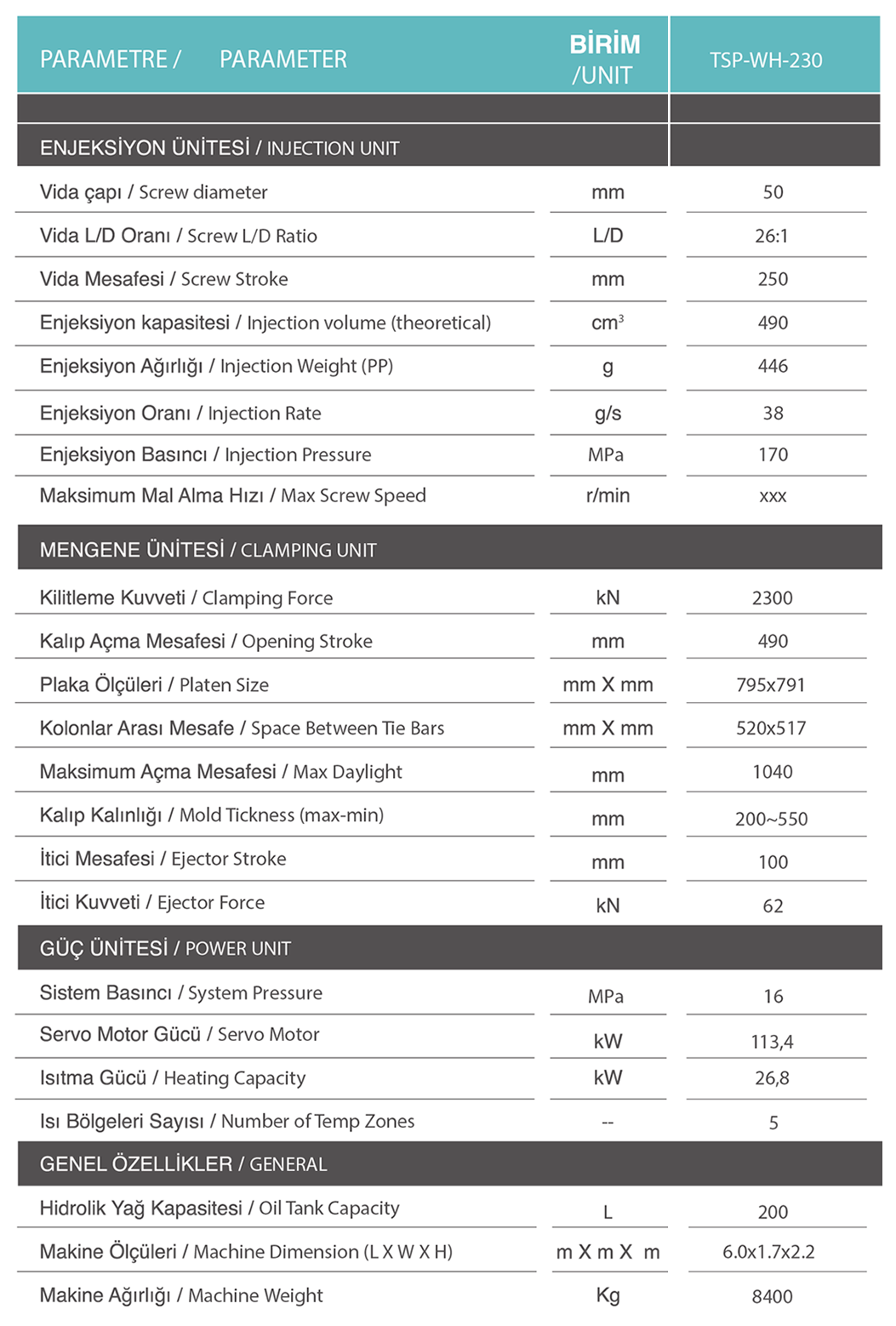

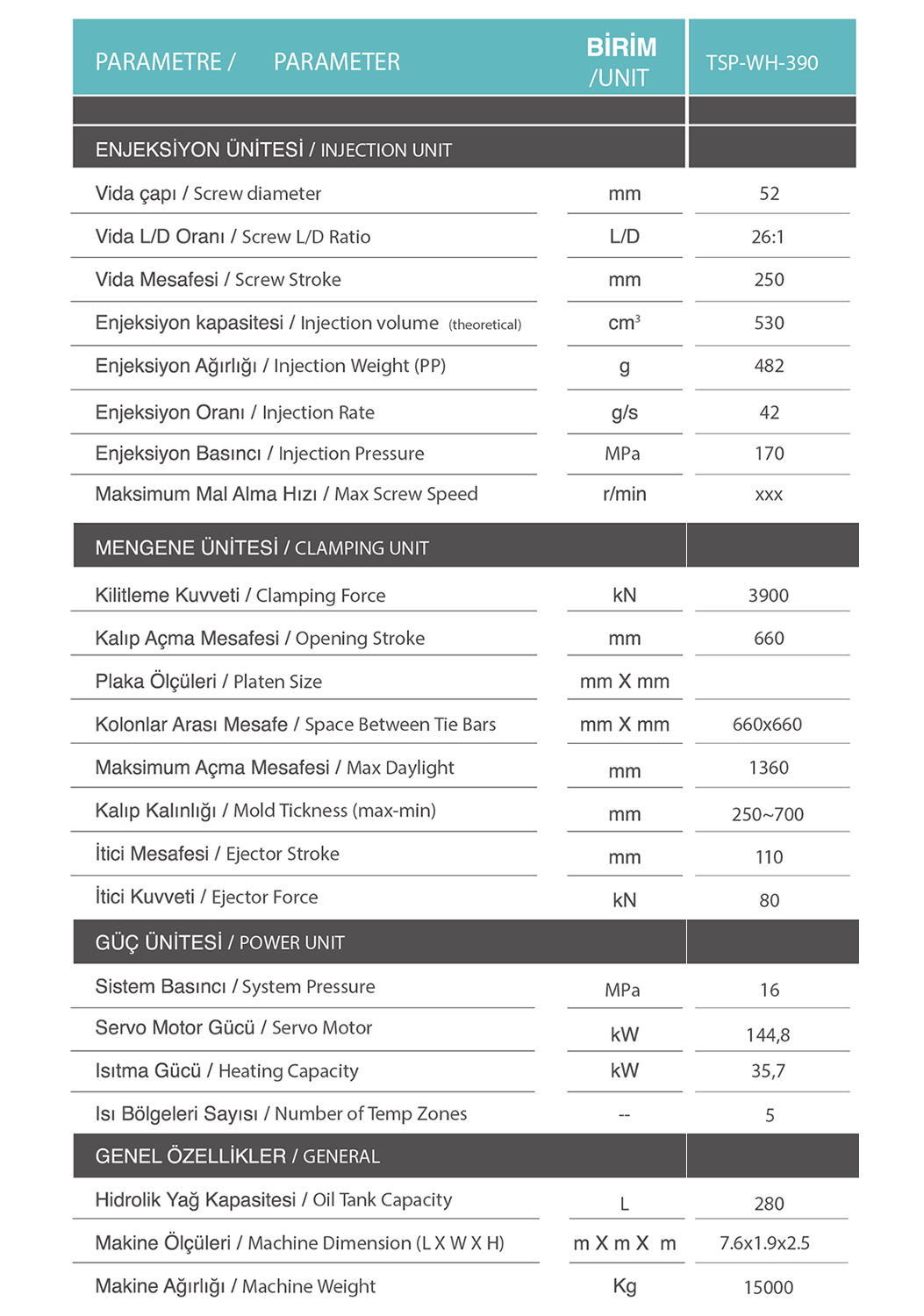

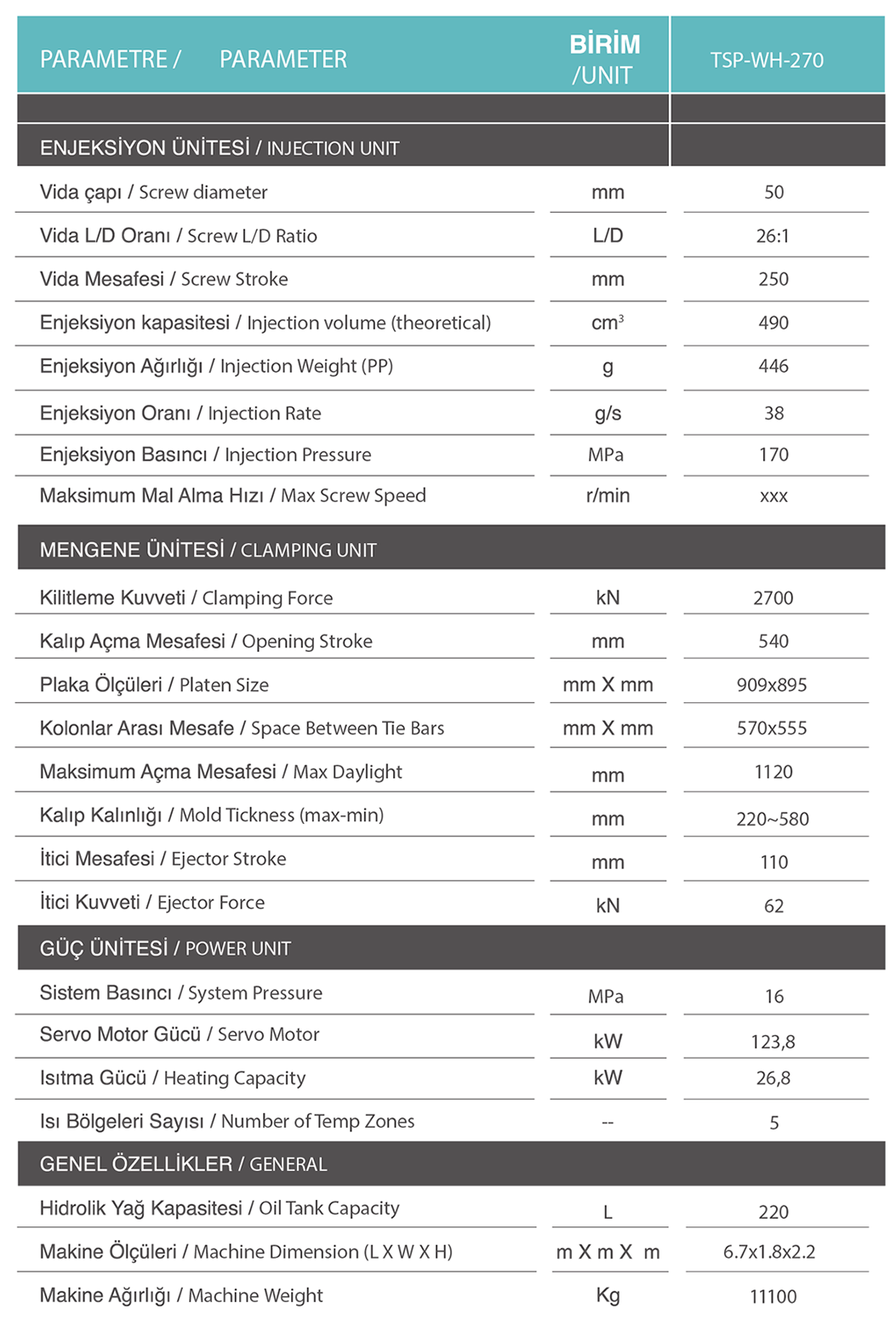

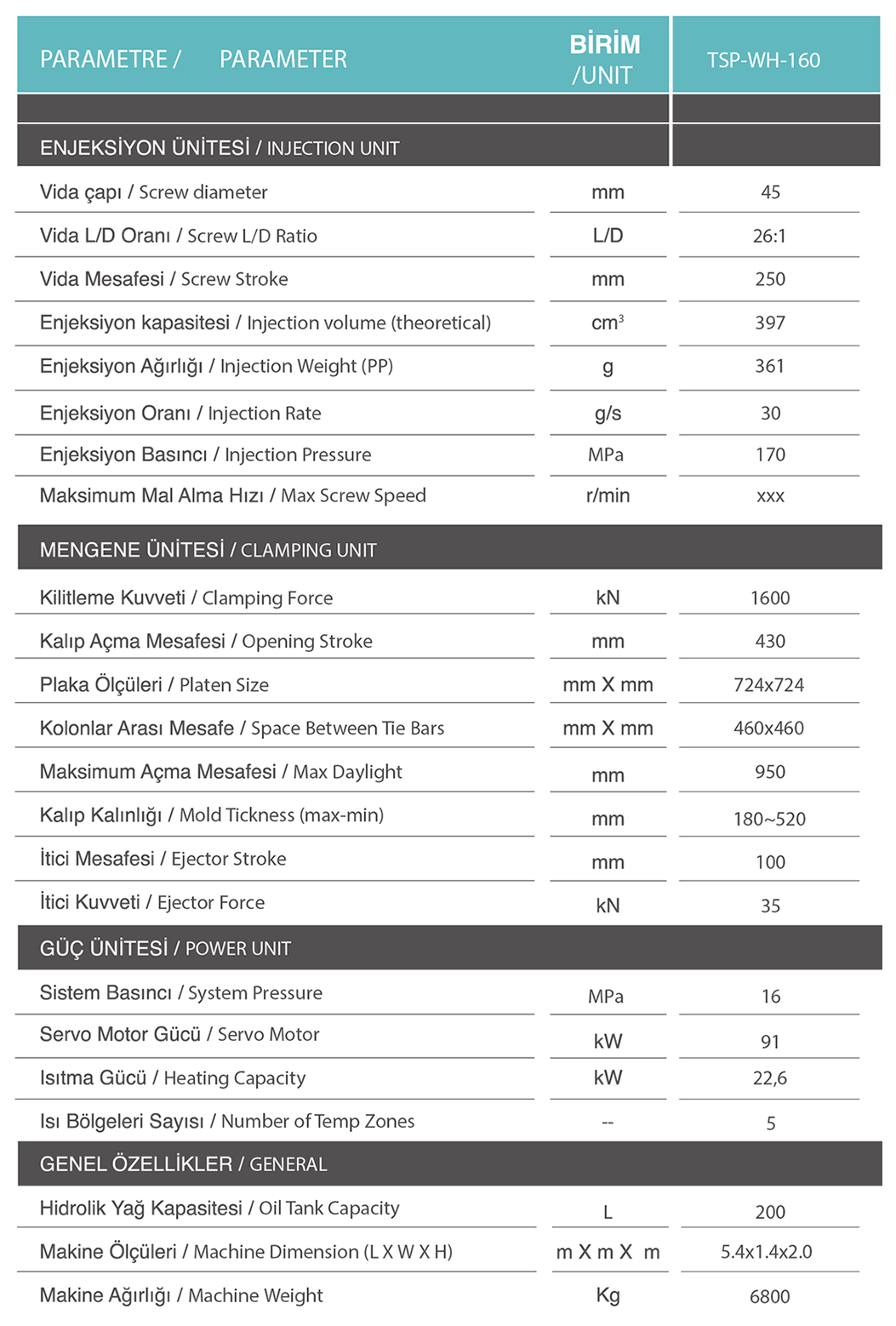

WH-160 ● WH-230 ● WH-270 ● WH-338 ● WH-390 ●

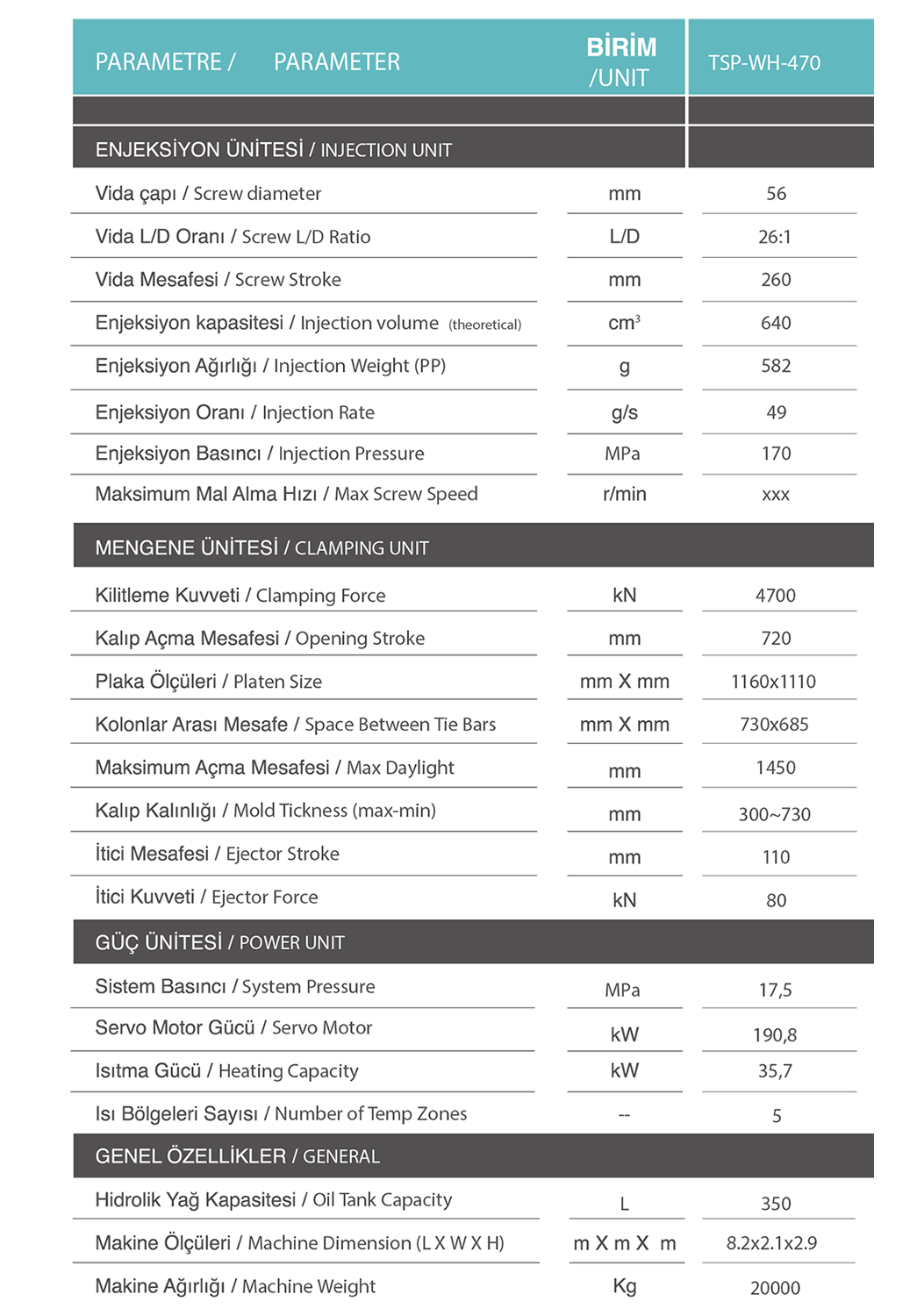

WH-410 ● WH-470 ●


TSP Hibrid Series

TSP/WGS hybrid high speed injection machine is a special machine produced for thin-walled products. TSP/WGS hybrid high speed injection machine moves with a servo motor driven belt-pulley system and provides a faster and more stable injection with ballscrew (worm screw shaft). The special machine produced for TSP/GSD series hybrid high-speed and thin products adopts injection unit, ball screw belt pulley servo motor drive and Linear slide rail support. Injection response time is faster, injection repetition accuracy is higher, injection accuracy can be reached 0.02.

Clamp Unit

High-rigidity molding unit system ensures low deformation of the molding unit during high-pressure molding, thus achieving precise injection molding.


Clamp Unit

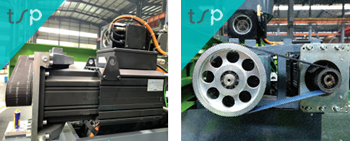

Injection Unit

Faster retrieval is achieved with the advanced servo motor driver. Fast action injection with servo motor refines the accuracy of injection amount.


Injection Unit

PLC Control System

The high-speed and precise servo motor drive system can control the injection time with an accuracy of up to 0.0015, ensuring high precision during rapid molding. High performance drive control system can maximize fast response speed. In addition, the energy saving effect is also quite obvious.


PLC Kontrol Sistemi

Hydraulic System

Innovative oil line design, combined with high-performance servo motor drive system, stable molding at low pressure, reduces product tension and increases durability.


Hydraulic System
